Porting an example from raylib-jlt

jlt-commons/raylib-jlt has 125 examples. 48 of them need no input at all, and those port almost mechanically. This is what "almost" means, worked through with the five that are done.

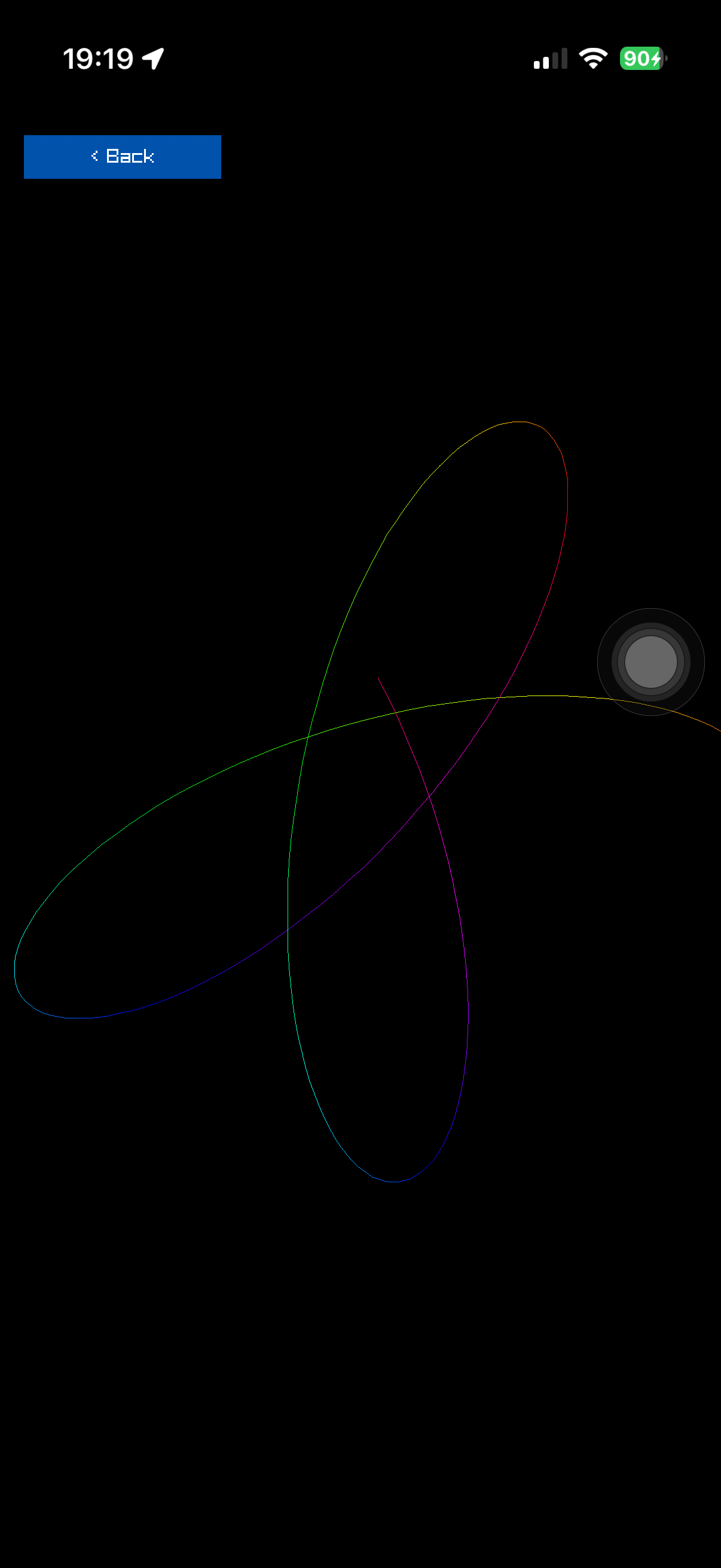

spirograph, the first port. Same maths as the original, a screen 1206x2622 instead of 800x450, and a loop it no longer owns.

They are desktop-shaped in two ways

A raylib-jlt example owns its loop:

(defn -main [& _]
  (rl/window! :width 800 :height 450 :title "spirograph")
  (rl/set-target-fps 60)
  (loop [frame 0 st (new-params)]
    (when (rl/keep-running? deadline)
      ...
      (rl/begin-drawing) ... (rl/end-drawing)
      (recur (inc frame) st))))
  (rl/close-window))

and, in the ones that take input, reads the keyboard inline from inside its model:

(defn- step [s]
  (let [dx (cond (rl/key-pressed? rl/KEY-LEFT) -1 ...)]
    ...))

Neither survives on a phone. The host owns the loop here, and there is no keyboard. The six namespaces this project carries from the Android experiment came across byte-identical precisely because they were written the other way round, pure and touch-first, with input arriving as a data snapshot.

The four changes

1. Become a reducer over frames. The scene contract in poc.raylib.gallery is {:id :title :init :update :draw :dispose}, where update takes state and an input snapshot and returns the next state. So the body of the original's loop becomes advance, and -main disappears.

2. Derive geometry from the live screen. The originals draw at a fixed 800x450 with constants to match: a ring at radius 170 about (400, 225). A phone is 1206x2622. Give the namespace a dimensions function taking the metrics, the way poc.raylib.flappy-bird does, and scale everything off the smaller dimension so a tall phone and a wide desktop both get something that fits.

3. Replace GetRandomValue with a seeded LCG. Not for purity as an aesthetic, but because it makes the scene runnable and testable on a build host with no raylib, no SDL and no device, and reproducible from a seed. The constants are poc.raylib.flappy-bird's, so a seed means the same thing everywhere:

(defn- next-random [seed]
  (mod (+ (* 1103515245 (long seed)) 12345) 2147483648))

4. Leave drawing to the host. The pure namespace computes; a draw-scene! method in raylib.gallery draws. Colours come back as [r g b a] and the host packs them, so no raylib type reaches the scene.

What it costs in bindings

Almost nothing, which was the surprise. Across five ports:

example	new bindings needed
spirograph	none
kaleidoscope	none
fireworks	none
boids	none
penrose	four: rlBegin, rlEnd, rlVertex2f, rlColor4ub
double-pendulum	none
fourier-epicycles	none

DrawLine, DrawCircle, DrawText, DrawRectangle and MeasureText cover most of the collection. Of eight further candidates surveyed, seven need nothing new at all; only analog_clock does, wanting DrawLineEx, DrawRing and a local-time call. Penrose needed rlgl immediate mode only because it fills polygons and raylib's shapes API has no call for that.

Three of the five ports, running on the phone. None of them needed a single new raylib binding.

Then measure it, because the port is the easy half

Two of the five did not hold 60 fps on first run, and neither for the reason anyone would guess. Read performance-on-a-phone.md before tuning anything: the short version is that an indexed loop over a vector beats every sequence function, allocation costs more than the FFI call it decorates, and the fix is usually in the drawing loop rather than the model.

Give anything that scales with frame cost a plain def rather than a literal, so it can be tuned live over the nREPL: trail-length, max-points, default-deflations, default-count all exist for that reason.

Sometimes the port is a rotation

fourier_epicycles is the one that needed a real design decision rather than a mechanical change. The original is landscape: the epicycle chain sits on the left and the wave it traces scrolls rightward across the remaining width. A phone is 1206 wide and 2622 tall, so there is no horizontal room for a scrolling wave and a great deal of vertical.

So the chain hangs near the top and the wave scrolls DOWN. It is the same picture through ninety degrees, and the maths is untouched: what changed is which axis carries time, and therefore which coordinate of the pen the trace records. Worth expecting one of these per handful of ports.

Wiring it in

Three edits, all in raylib.gallery:

(:require ... [raylib.scenes.spirograph :as spiro])
(def scenes [... (spiro/scene)])
{:id :generative :title "Generative" :scenes [:spirograph ...]}

plus a draw-scene! method. Then a test namespace beside the others, since the scene is pure and there is no excuse not to.
