raylib-jlt Guide

User-facing documentation for raylib-jlt: raylib bindings for jolt (native Clojure on Chez Scheme, no JVM) over jolt.ffi. Each page below covers one FFI pattern or drawing convention, with citations to the source files that implement it.

The 187 example programs that used to live in this repo moved to raylib-jolt-demo, one runnable project each, with a gallery.

Why this exists

The examples show you what the bindings draw; these pages explain why the binding layer is shaped the way it is. Almost every non-obvious decision in net.b12n.raylib traces back to one question (how a given C struct crosses the FFI boundary), and the answer differs per struct. Read these when you want to bind a C library from Jolt yourself, or when an example does something that looks needlessly indirect and you want the ABI reason behind it.

What raylib-jlt is

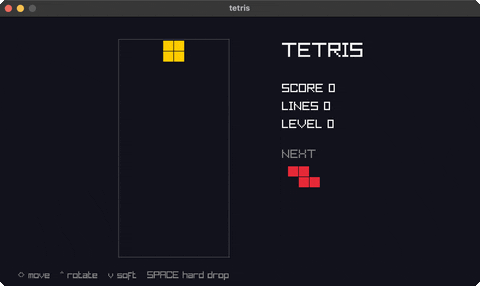

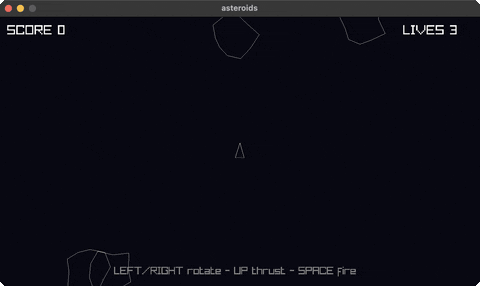

A library of raylib bindings, net.b12n.raylib (see the-library.md), and the guide to how they work. Its 187 examples, the classic core/shapes/text demos, a handful of games (asteroids, tetris, pong, vampire-survivors) and a 3D set (orbiting cameras, waving cubes, an rlgl solar system), live in raylib-jolt-demo, each a small Clojure namespace on top of the library.

It is the graphics sibling of b12n-tsj (tree-sitter from Jolt, not yet public). Both bind a real external C library directly over its C ABI with jolt.ffi, Chez foreign-procedure under the hood. They differ on how hard the library leans on by-value structs, and that difference is the whole story of the FFI pages here:

raylib hits the mild version of struct-by-value: its hot path is Color, a 4-byte struct that reduces to a uint32, and its only large structs (Camera2D/Camera3D) are by-value arguments it can fake behind a pointer on AArch64. tree-sitter hits the severe version: a 32-byte TSNode passed AND returned by value, so it needs a full C shim. raylib needs none.

Four ABI facts drive every distinctive decision in this repo:

Color packs into a :uint: a 4-byte all-integer struct travels in one general-purpose register, so every draw call passes color as an int, no struct marshaling. (color-by-value.md)
Camera2D/Camera3D go by pointer: a >16-byte composite is passed indirectly on AArch64, so a [:pointer] binding + a hand-built native struct works (with an x86-64 caveat). (struct-by-value-pointer-trick.md)
Vector2/Vector3 geometry uses rlgl: small float structs go in FP registers, which the pointer trick does not cover, so shapes and 3D cubes are drawn with rlgl's scalar immediate mode instead. (rlgl-immediate-mode.md)

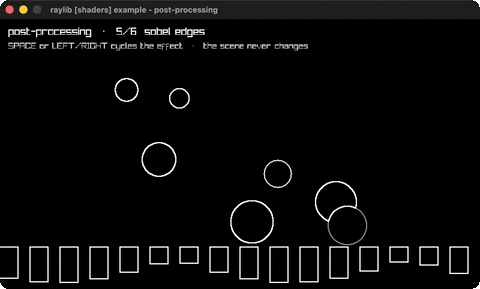

Structs by value, in both directions: jolt 0.7.23's [:by-value [:struct ...]] passes and returns C structs directly, which is what makes LoadShader and raylib-jolt-demo's shaders examples possible. (structs-by-value.md)

Facts 2 and 3 predate it and describe what the examples still mostly do; before 0.7.23 a returned struct could not be expressed at all, and LoadTexture's 20-byte Texture2D coming back through AArch64's x8 indirect-result register is why textures and framebuffers are still reached through rlgl's scalar layer. (textures-via-rlgl.md)

Nothing about jolt.ffi is raylib-specific: it binds any C ABI symbol. The analog-clock / digital-clock examples call plain libc time()/localtime() (via rl/local-time) for real wall-clock time, the library's one non-raylib FFI, reading struct tm's tm_hour/tm_min/tm_sec ints straight out of native memory.

Capability pages

The library

✅ the-library.md: what net.b12n.raylib is, its 19 modules, how to depend on it from another jolt project (in-repo and :git/url), and why net.b12n.raylib.all is generated rather than hand-written.

The FFI core (the reason this repo is interesting)

✅ structs-by-value.md: [:by-value [:struct ...]] in argument and return position, the leading-destination-pointer return convention, why the descriptor must be a literal, ffi/layout / with-layout / read-field / write-field, and why a uniform-type enum is read from the header actually being linked. Source: net.b12n.raylib.shaders (set-uniform-texture!).
✅ color-by-value.md: why raylib's Color crosses the FFI boundary as a packed :uint and not a struct, the little-endian rgba packing, and the two-by-value-Colors-in-one-call case (DrawRectangleGradientV). Source: net.b12n.raylib.color (rgba, the palette) and net.b12n.raylib.core (clear-background).
✅ struct-by-value-pointer-trick.md: how a 24-byte Camera2D / 44-byte Camera3D is passed by value on AArch64 by allocating the struct in native memory and binding BeginMode2D/BeginMode3D as [:pointer]. The x86-64 non-portability caveat is here. Source: net.b12n.raylib.camera (with-camera-2d, with-camera-3d).

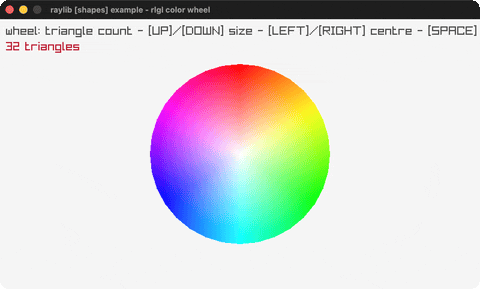

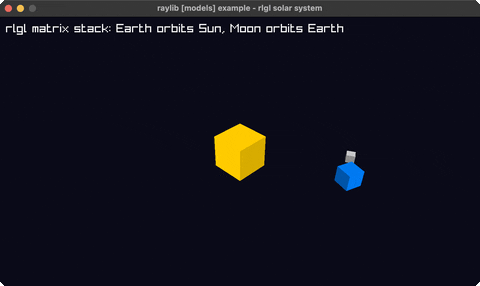

✅ rlgl-immediate-mode.md: the fallback for by-value Vector2/Vector3 args the pointer trick can't fake: rlgl scalar immediate mode (rlBegin/rlVertex2f/rlVertex3f/rlColor4ub) for the 2D triangle and the 3D cube!, plus the rlgl matrix stack for nested transforms (the solar-system demo). Source: net.b12n.raylib.models (cube!, quad-3f) and net.b12n.raylib.rlgl (the rl-* binds).
✅ textures-via-rlgl.md: why every raylib Load* function is unbindable (a >16-byte struct returned through x8), and how rlLoadTexture / rlLoadFramebuffer reach the same GPU objects with nothing but ints. Includes the HiDPI restore that EndTextureMode does across two functions and which is easy to get subtly wrong. Source: net.b12n.raylib.textures (texture-from-fn, texture!, render-texture, with-render-texture).

The drawing API

✅ kwarg-drawing-api.md: the two-layer design: raw positional ffi/defcfn binds at the boundary (mirroring C), ergonomic keyword-argument wrappers (text!/rect!/circle!/…) on top, and the ">3 arguments → keyword args" style convention. Source: net.b12n.raylib.kwargs.

Working from an editor

✅ repl-driven-development.md: why evaluating (-main) over nREPL kills the whole process on macOS (AppKit only initializes on the main thread, an nREPL eval does not run there), the rl/run! call that fixes it, and what does and does not work against a running window. Source: net.b12n.raylib.core (run!).

Verifying without a display

✅ headless-smoke-testing.md: how a windowed example proves itself with no person at the keyboard: RAYLIB_APP_AUTO_QUIT_MS (auto-close), RAYLIB_APP_SHOT (dump one PNG), and the batched-geometry flush that makes the screenshot non-empty. Source: raylib-jolt-demo's common/src/net/b12n/raylib_jlt/app.clj (auto-quit-deadline, keep-running?, maybe-screenshot!). It stayed with the examples rather than moving into the library.

Orientation

raylib-jolt-demo: all 187 examples, grouped games / core / shapes / text / 3d / generative / textures / shaders / audio, each its own project with a page saying what it demonstrates. Read it for the map, and the FFI pages here for the mechanics.
